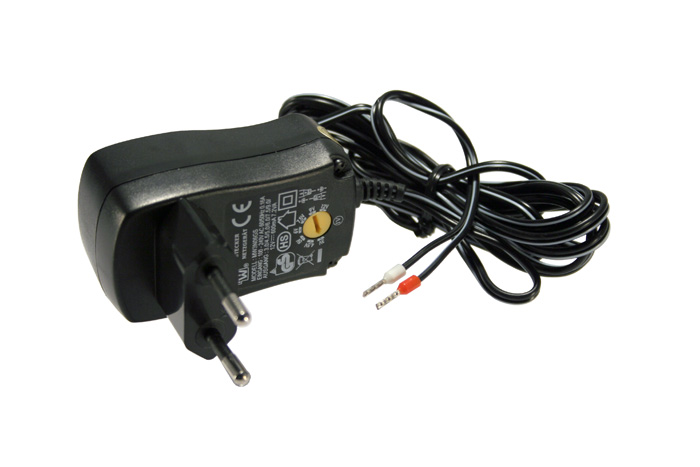

Power supply unit 230VAC
1.5/3/4.5/6/7.5/9/12V DC switchable
including wire-end sleeves orange/white
Due to its small dimensions and the good electrical characteristics the module is ideal as a local power supply for electronic equipment.
  |
|
Line input
|
230V AC 50Hz |
Output voltage
|
1.5/3/4.5/6/7.5/9/12V DC |
Power output
|
7.2 W at 12V 600mA
|
Operating temperature
|
-30 to +85°C |
Dimensions
|
68.4 x 38.7 x 68.4mm (L x W x H) |
Data sheet
|
on request |
Ordering information
|
901B1K1 |
Additional information
|
suitable for:
- media converters product series 901F6522*
- external power supplied Interfaces
|
