Serie 136

Serie 136
zoom Zoom image

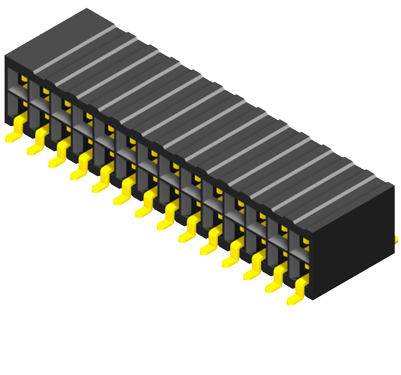

SMT Femaleheader Pitch 1,27mm for square contact 0,46mm
Total hight 3,45, 2 row side entry

  Serie 136

Number of contacts

6 to 080 (2-row)

Performance

2- row - lying

Insulator

Thermoplastic, rated UL94 V-0

Contact Material

copper alloy

Contact Surface

Acc. to options (see below), over Ni



Contact Resistance

< 20mΩ

Insulation Resistance

> 1000MΩ

Test Voltage

1kVDC

Voltage Rating

500VAC

Current Rating

1A

Temperature Range

-40°C ... +105°C


Packaging Tube ( standard) Reel on request
Partnumber example 13600FL221010 (10 contacts)

Catalog page / datasheet
3D PDF File on request



We manufacture the pin headers in every desired number
and varying pitches as well as more pin lengthes
and dimensions on request
