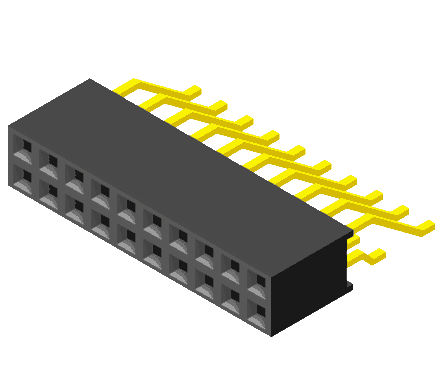

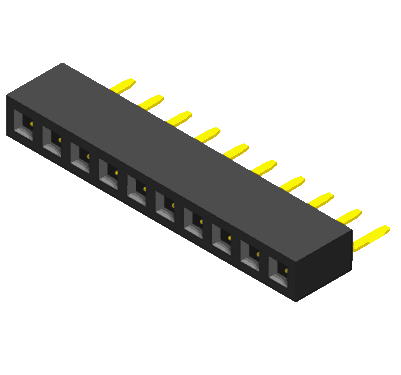

Serie 144

SMT Femaleheader Pitch 2,00mm for square contact 0,50mm
Total hight 6,30mm. 1 and 2 row, lying

	Serie 144
Number of contacts	3-50 (1-row) 6 to 100 (2-row)
Performance	1-, 2- row - straight
Insulator	Thermoplastic, rated UL94 V-0
Contact Material	copper alloy
Contact Surface	Acc. to options (see below), over Ni

Contact Resistance	< 20mΩ
Insulation Resistance	> 1000MΩ
Test Voltage	1kV_DC
Voltage Rating	500V_AC
Current Rating	1A
Temperature Range	-40°C ... +105°C

Packaging	Tube (standard) Reel (on request)
Partnumber example	14400FL228010 (10 contacts)
	Catalog page / datasheet
	3D PDF File on request

	We manufacture the pin headers in every desired number and varying pitches as well as more pin lengthes and dimensions on request
