Serie 130

Serie 130
zoom Zoom image
Serie 130 Serie 130 Serie 130

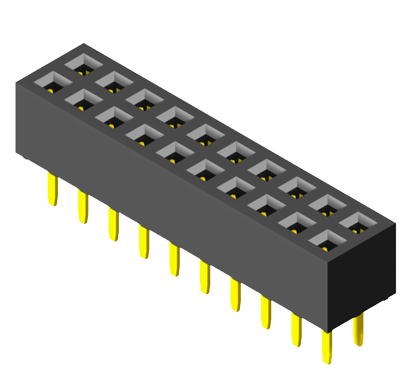

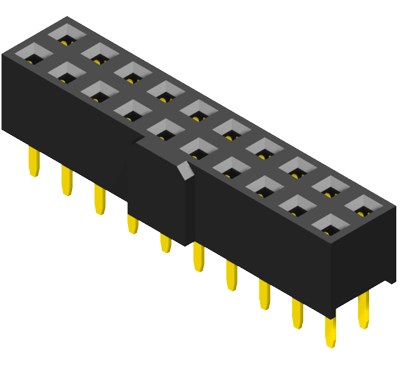

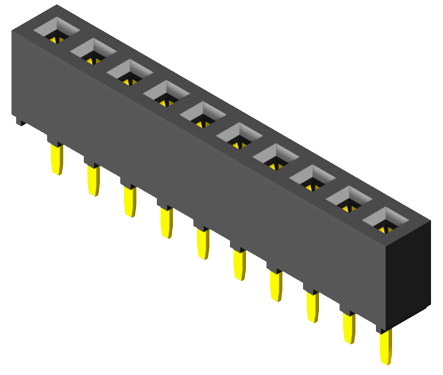

Femaleheader Pitch 2,00mm for square contact 0,50mm
Total hight 4,30mm. 1 and 2 row straight, right angled

  Serie 130

Number of contacts

3-50 (1-row) 6 to 100 (2-row)

Performance

1-, 2- row - straight

Insulator

Thermoplastic, rated UL94 V-0

Contact Material

copper alloy

Contact Surface

Acc. to options (see below), over Ni



Contact Resistance

< 20mΩ

Insulation Resistance

> 1000MΩ

Test Voltage

1kVDC

Voltage Rating

500VAC

Current Rating

1A

Temperature Range

-40°C ... +105°C


Packaging Bulk (standard) Tube or Reel (on request)
Partnumber example 13000FL218010 (10 contacts)

Catalog page / datasheet
3D PDF File on request



We manufacture the pin headers in every desired number
and varying pitches as well as more pin lengthes
and dimensions on request
