Serie 176

Serie 176
zoom Zoom image

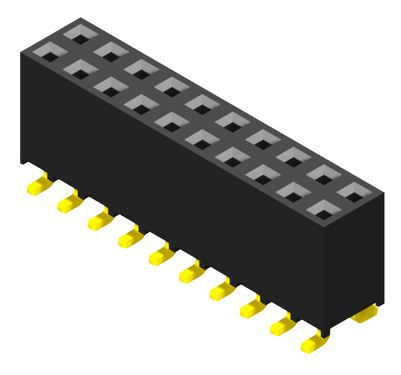

SMT Femaleheader Pitch 2,00mm for square contact 0,50mm
Total hight 7,62mm. 2 row standing

  Serie 176

Number of contacts

 6,10,12,14,18,20,22,24,26,28,30,32,34,44 (2-row)

Performance

2- row - straight

Insulator

Thermoplastic, rated UL94 V-0

Contact Material

copper alloy

Contact Surface

Acc. to options (see below), over Ni


Contact Resistance

< 20mΩ

Insulation Resistance

> 1000MΩ

Test Voltage

1kVDC

Voltage Rating

500VAC

Current Rating

2A

Temperature Range

-40°C ... +85°C

Packaging Reel (standard)
Partnumber example 1760080218010 (10 contacts)

Catalog page / datasheet
3D PDF File on request



We manufacture the pin headers in every desired number
and varying pitches as well as more pin lengthes
and dimensions on request
