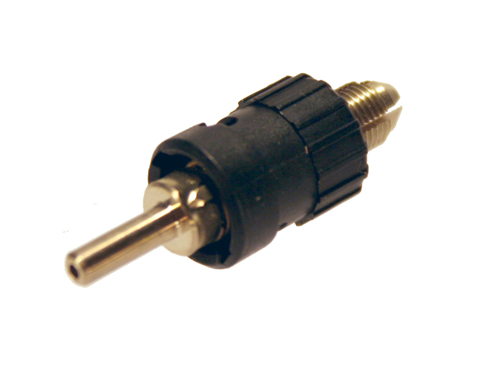

F-ST Connector for 1mm Plastic Optical Fiber (anti-turn lock), jacket 2.2 mm, simplex, plastic bajonet lock
The FO connector style F-ST is optimized in particular for applications using standard 1 mm polymer optical fiber demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics. Especially the shown clamp connector can be reused and connected to the POF-cable without special tools.
 |
|
| Connector type |
F-ST |
| Ferrule type |
metal, POF
|
| Outer diameter |
2.5 mm |
| Inner diameter |
1 mm |
Protection class
|
-
|
Assembly type
|
clamping
|
| Accessories |
902SSSTSST001 Dust protection cap red
902KT02226001 Protective rubber sleeve black for cable diameter 2.2mm
902KT02226002 Protective rubber sleeve red for cable diameter 2.2mm
902KT03250001 Protective rubber sleeve black for cable diameter 3.2mm
910AB00100001 Fiber stripper
910PS0ST00001 Polishing disc
910PB00100001 Polishing film, grain size 1000
|
| Data sheet |
 |
| Ordering information |
902SS001STK02
including dust protection cap red
902SS001STK12
including dust protection cap red and protective rubber sleeve black 29mm
902SS001STK22
including dust protection cap red and protective rubber sleeve black 50mm
|
| Additional information |
Assembly instruction
|
