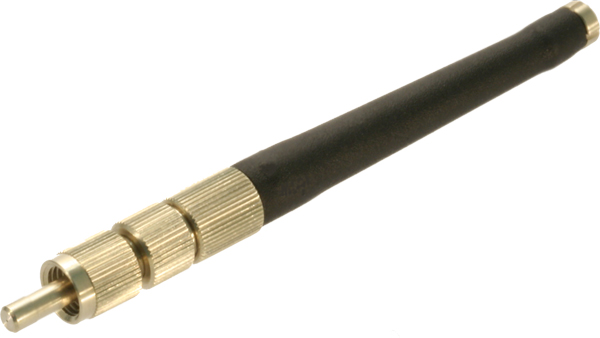

F-SMA clamp connector knurled nut for PCF 200/230µm including protective rubber sleeve
This connector, designed for 200/230μm PCF fiber uses an assembly without crimping and glueing. A patented clamp system integrated into the connector body holds the PCF fiber, the strain relief and the cable jacket in place after assembly. Also, it is possible to disassemble the connector and reuse it several times. This big advantage makes it easy to repeat an assembly if the demanded optical parameters are failed after finishing. Additionally, there is no need for expensive tools like heat oven or crimp pincers and an enormus time saving while no crimping, glueing and heat cureing is needed. Fiber endface preparation is done by hand thru scribing and breaking or, to get repeatable results, using the special designed fiber cleaving tool from Ratioplast-Optoelectronics.
 |
|
| Connector type |
F-SMA |
| Ferrule type |
metal, PCF
|
| Outer diameter |
3.17 mm |
| Inner diameter |
235µm |
Protection class
|
-
|
Assembly type
|
clamping
|
| Accessories |
910AB00100001 Wire stripper
902SSSTSSM001 Dust protection cap
910FW230SM001 Cleaving tool
|
| Data sheet |
 |
| Ordering information |
902SS201SMK01
for cable diameter 2.2mm
902SS202SMK01
for cable diameter 2.5mm
902SS203SMK01
for cable diameter 3.0mm
|
| Addtional information |
- |
