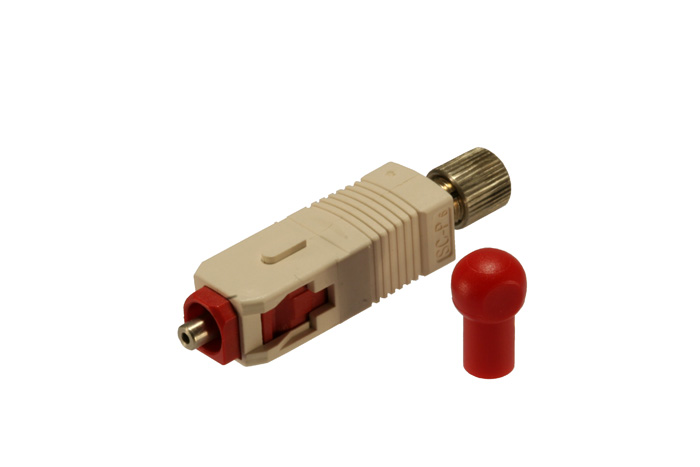

FO clamp connector SC for POF cable diameter 2.2mm
This connector, designed for 980/1000μm polymer optical fiber cable, uses an assembly without crimping and glueing. A patented clamp system integrated into the connector body holds the fiber and the cable jacket in place after assembly. Also, it is possible to disassemble the connector and reuse it several times. This big advantage makes it easy to repeat an assembly if the demanded optical parameters are failed after finishing.
 |
|
| Connector type |
SC |
| Ferrule type |
metal, POF
|
| Outer diameter |
2.5 mm |
| Inner diameter |
1 mm |
Protection class
|
-
|
Assembly type
|
clamping
|
| Accessories |
910AB00100001 Wire-stripper
910PS0SC00001 Polishing disc
910PB00100001 Polishing film grain size 1000
GSWM00010 Cutting tool
910SZ00100A01 Cutting tool for POF-cable with automatic blade infeed
910SZ00100001 Cutting tool for POF-cable with hand operated blade infeed
902SSSTSST001 Dust protection cap red
|
| Data sheet |
 |
| Ordering information |
902SS001SCK01
|
| Addtional information |
- |
