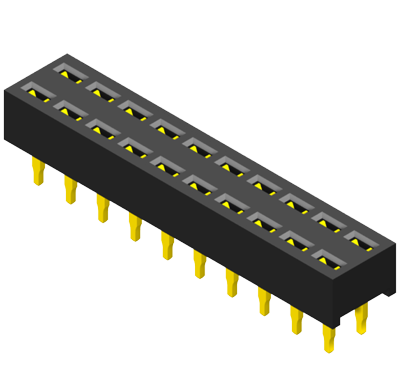

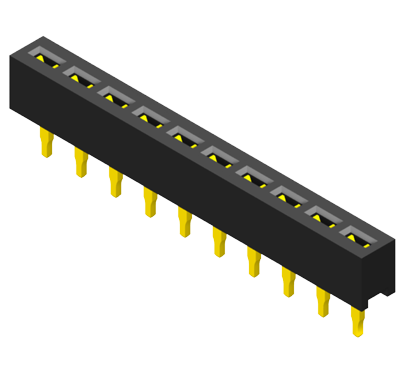

Serie 154

Femaleheader Pitch 2,54mm for square contact 0,64mm
Total hight 3,50mm. 1 and 2 row straight

	Serie 154
Number of contacts	3-40 (1-row) 4 to 80 (2-row)
Performance	1-, 2- row - straight, right angled
Insulator	Thermoplastic, rated UL94 V-0
Contact Material	copper alloy
Contact Surface	Acc. to options (see below), over Ni

Contact Resistance	< 20mΩ
Insulation Resistance	> 1000MΩ
Test Voltage	1kV_DC
Voltage Rating	500V_AC
Current Rating	3A
Temperature Range	-40°C ... +105°C

Packaging	Bulk (standard) Tube or Reel (on request)
Partnumber example	1540HFL212010 (10 contacts)
	Catalog page / datasheet
	3D PDF File on request

	We manufacture the pin headers in every desired number and varying pitches as well as more pin lengthes and dimensions on request
