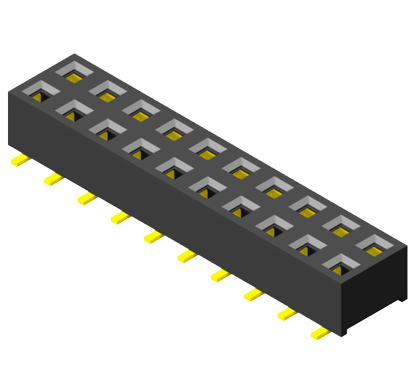

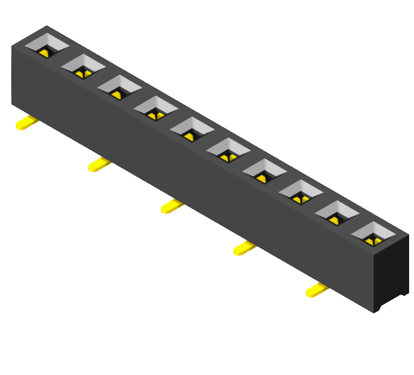

SMT Femaleheader Pitch 2,54mm for square contact 0,64mm
Total hight 3,71mm,1-, 2 row standing
  |
Serie 158 |
|
Number of contacts
|
2 to 40 (per row)
|
|
Performance
|
1-, 2- row - straight
|
|
Insulator
|
Thermoplastic, rated UL94 V-0
|
|
Contact Material
|
copper alloy
|
|
Contact Surface
|
Acc. to options (see below), over Ni
|
| |
|
|
Contact Resistance
|
< 20mΩ
|
|
Insulation Resistance
|
> 1000MΩ
|
|
Test Voltage
|
1kVDC
|
|
Voltage Rating
|
500VAC
|
|
Current Rating
|
3A
|
|
Temperature Range
|
-40°C ... +105°C
|
| |
|
| Packaging |
Tube (standard) Reel (on request) |
| Partnumber example |
15800FL212010 (10 contacts) |
|
|
Catalog page / datasheet
|
 |
3D PDF File on request |
| |
|
| |
We manufacture the pin headers in every desired number
and varying pitches as well as more pin lengthes
and dimensions on request
|
| |
|
