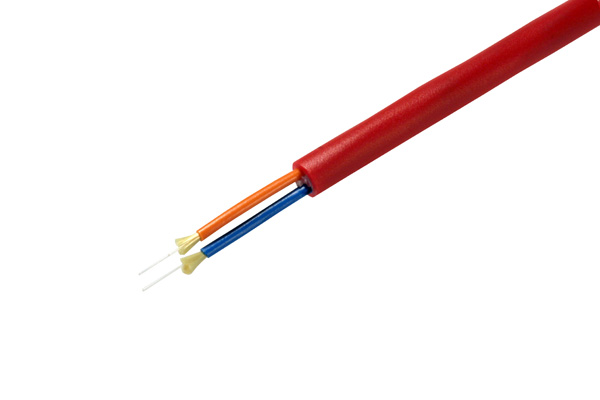

Splitable PCF outdoor cable 200/230µm duplex, outer diameter 7.4mm, PUR-outer jacket red, drag chain useable
The robust and highly flexible fiber optic cable is designed for the application in a harsh industrial environment. This breakout-outdoor cable enables the direct connector assembly. The fiber optic cable is drag chain useable as well as applicable for laying in cable ducts, pipes and cable trays. The fibers are characterized by their excellent mechanical and optical properties as well as their small attenuation values.
 |
|
Outer diameter
|
cable
7.0mm
buffer tube
2.2mm |
| Cladding diameter |
230µm |
| Core diameter |
200µm |
| Buffer tube |
TPE-U - polyurethane
red
|
Type designations
|
AT-V(ZN)Y11Y 2K200/230 |
Number of fibers
|
2
|
Operating temperature
|
-40 to +85°C |
| Data sheet |
 |
| Ordering information |
93FAHUN02000702RT-IG |
| Additional information |
- outer jacket UV resistant and free of halogen
- very good resistance against oil, fuel, acids and bases |
