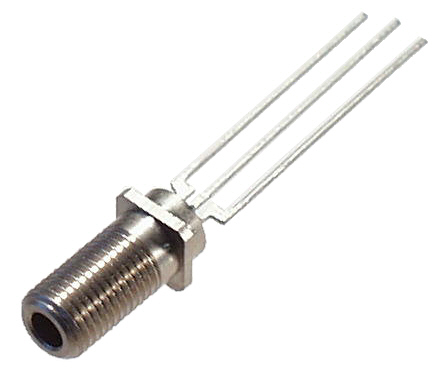

Optical Receiver 660nm F-SMA diode housing with insertion flange, nut and washer
The receiver consists of a photo diode with integrated TIA and a TTL compatible "open collector" output. The receiver is fully DC coupled and does not require an encoded input signal. The receiver is especially appropriate for fiber optic applications up to 1mm fiber diameter.
 |
|
Data rate
|
5MBit/s |
Wave length
|
660nm
|
| Operating voltage |
4.75 to 5.25 V |
| Optical port |
F-SMA
|
| Housing type |
metal
|
| Dimensions |
41.2 x 7.0 x 7.0 mm (LxWxH)
|
| Accessories |
911M1436UNS2A Hexagonal nut F-SMA, 1/4-36 UNS 2A
911F1436UNS01 Washer F-SMA
904DTSTSSM011 Dust protection cap red
|
Data sheet
|
on request |
| Ordering information |
905EM660EK001
|
