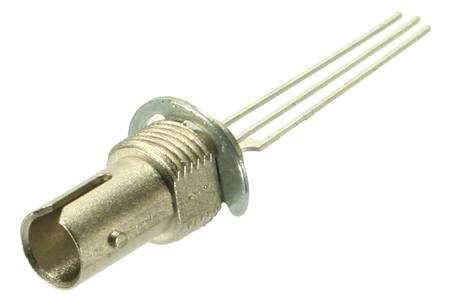

Optical Receiver 660nm F-ST diode housing with insertion flange, locking washer, nut and washer
The receiver consists of a photo diode with integrated TIA and a TTL compatible "open collector" output. The receiver is fully DC coupled and does not require an encoded input signal. The receiver is especially appropriate for fiber optic applications up to 1mm fiber diameter.
 |
|
Data rate
|
5MBit/s |
Wave length
|
660nm
|
| Operating voltage |
4.75 to 5.25 V |
| Optical port |
F-ST
|
| Housing type |
metal
|
| Dimensions |
45.8 x 7.6 x 7.6 mm (LxWxH)
|
| Accessories |
911M3832UNE2A Hexagonal nut F-ST 3/8-32 UNEF 2A
911F3832UNE01 Washer F-ST
904DTSTSST013 Dust protection cap black |
Data sheet
|
on request |
| Ordering information |
905EM660EKST1
|
