Serie 025 |
|
Number of contacts
|
2 to 50 (1-row)
|
|
Performance
|
1- row, straight, right angled
|
|
Insulator
|
glass fibre reinforced polyamide, rated UL94 V-0
|
|
Contact Material
|
0.63mm square pin, CuZn30
|
|
Contact Surface
|
Acc. to options (see below), over Ni
|
| |
|
|
Contact Resistance
|
< 20mΩ
|
|
Insulation Resistance
|
> 1000MΩ
|
|
Test Voltage
|
1kVDC
|
|
Voltage Rating
|
250VAC
|
|
Current Rating
|
3A
|
|
Temperature Range
|
-55°C ... +125°C
|
| |
|
| Packaging |
Tube, Bulk ( standard) or Reel (on request) |
| Partnumber example |

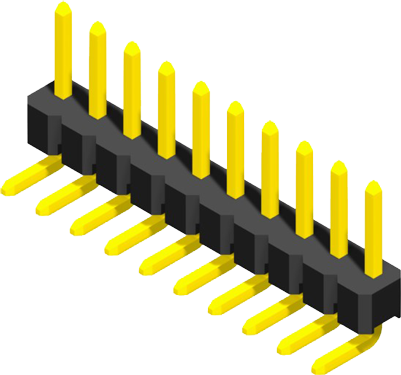

0250425124010 (1 row right angled 10pol.)

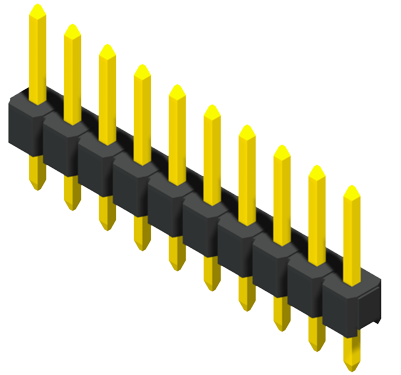

0250200114008 (1 row staright8pol.) |
|
|
Catalog page / datasheet
|
 |
3D PDF File on request |
| |
|
| |
We manufacture the pin headers in every desired number
and varying pitches as well as more pin lengthes
and dimensions on request
|
| |
|
