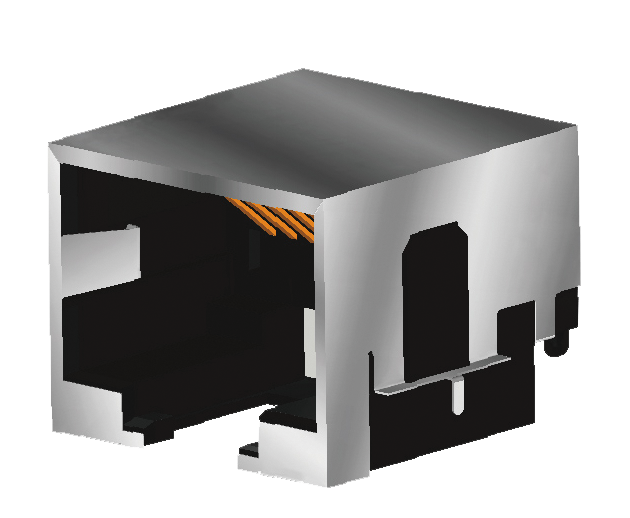

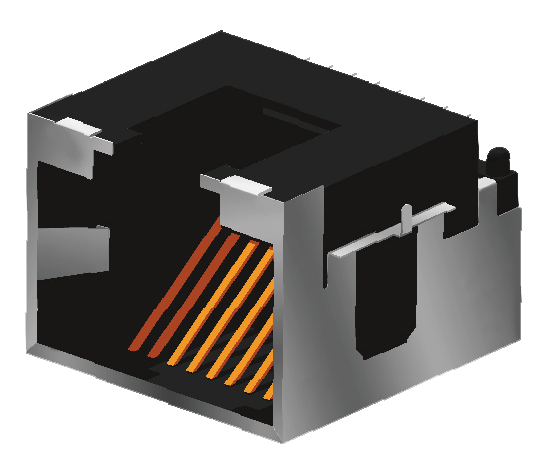

MJDR54-88AB

MJDR54-88AB
zoom Zoom image
MJDR54-88AB MJDR54-88AB MJDR54-88AB

Specification   Ordernumber  example
Isolation restistance 1M Ohm min. MJDR54-88AB 8P8C 6µ"
Contact restistance 40m Ohm max.
Current rating 1,5 A max.
Rating Voltage 125 V AC
Temperatur range -20 bis +75 ° C
Durability 750 cycles min.

Materials
Housing High temp thermaoplastic
Solder Temperatur 260° C
Color Black
Spring wire Phosphor Bronze
Plating Gold over Nickel
Datasheet
