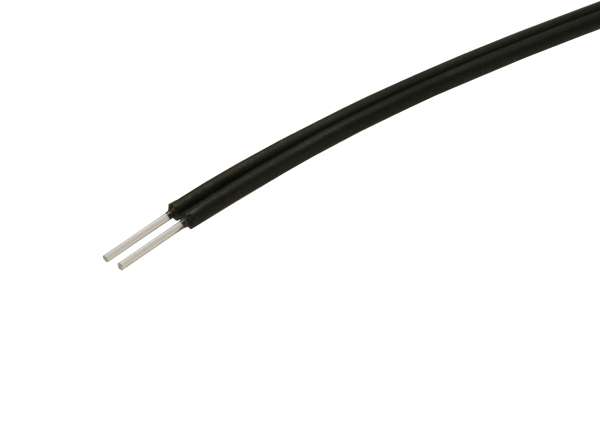

Plastic fiber cable duplex, fiber 1mm, PE-jacket black 2.2x4.4mm (UL listed)
Plastic opitical fiber simplex 980µm PMMA fiber and 1000µm fiber cladding simple and quick connectorizing, direct connector assembly
 |
|
Outer diameter
|
2.2 x 4.4 mm |
| Cladding diameter |
1000 µm |
| Core diameter |
980 µm |
| Buffer tube |
PE - polyethylene, black
|
Type designations
|
V-2Y 2x1P980/1000
|
Number of fibers
|
2
|
Operating temperature
|
-55 to +80°C |
| Data sheet |
 |
| Ordering information |
903IP00102009 |
| Additional information |
UL 5292, VW-1 |
