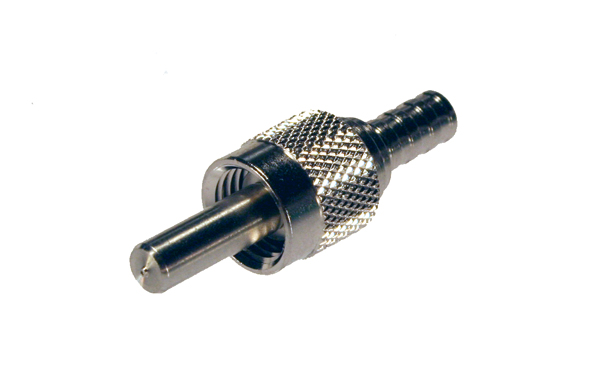

FO connector F-SMA with knurled nut and metal ferrule for 50/125µm multi-mode fiber, including crimp sleeve and protective rubber sleeve
The FO connector style F-SMA is optimized in particular for applications using multi-mode glass optical fiber demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics.
 |
|
| Connector type |
F-SMA |
| Ferrule type |
metal, multi-mode
|
| Outer diameter |
3.17 mm |
| Inner diameter |
128µm
|
Protection class
|
-
|
Assembly type
|
crimping, adhesive bonding
|
| Accessories |
909MKGLASM002 Tool kit for glass optical fiber cable assemblies F-SMA
902KT00340010 Protective rubber sleeve black for cable diameter 3.0mm
902KT02550010 Protective rubber sleeve black for cable diameter 2.5mm
H000039999010 Crimp sleeve with step for cable diameter 3.0mm
H00053999010 Crimp sleeve with step for cable diameter 2.5mm
|
| Data sheet |
 |
| Ordering information |
902SS125SM001
including protective rubber sleeve black for cable diameter 3.0mm
902SS125SM002
including protective rubber sleeve black for cable diameter 2.5mm
|
| Additional information |
- |
