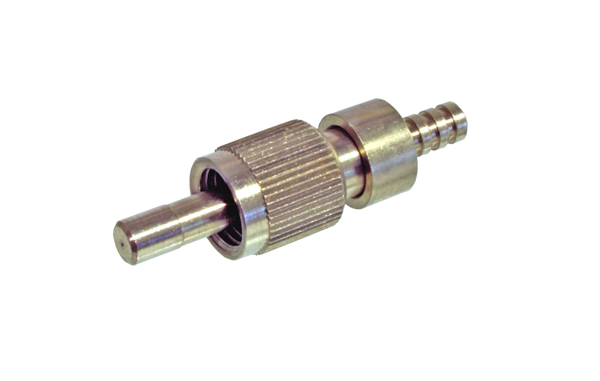

FO connector F-SMA with knurled nut and metal ferrule for 200/230µm PCF, including crimp sleeve and protective rubber sleeve
The FO connector style F-SMA is optimized in particular for applications using glass optical fiber demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics.
 |
|
| Connector type |
F-SMA |
| Ferrule type |
metal, PCF
|
| Outer diameter |
3.17 mm |
| Inner diameter |
235µm
|
Protection class
|
-
|
Assembly type
|
crimping, adhesive bonding
|
| Accessories |
909MKGLASM002 Tool kit for glass optical fiber cable assemblies F-SMA
902KT03250001 Protective rubber sleeve black for cable diameter 3.2mm
902KT03250002 Protective rubber sleeve red for cable diameter 3.2mm
902KT06050001 Protective rubber sleeve black for cable diameter 6.0mm
HST0032000010 Crimp sleeve with step for cable diameter 3.0mm
|
| Data sheet |
 |
| Ordering information |
902SS230SM001-01
without protective rubber sleeve
902SS230SM001
including protective rubber sleeve black for cable diameter 3.2mm
902SS230SM003
including protective rubber sleeve red for cable diameter 3.2mm
902SS230SM051
including protective rubber sleeve black for cable diameter 5.0mm
|
| Additional information |
- |
