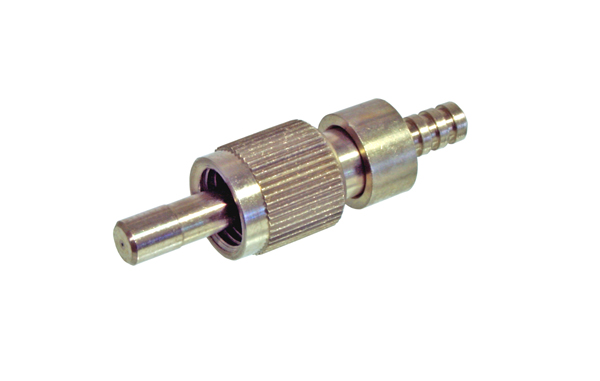

FO connector F-SMA with knurled nut and metal ferrule for 300/330µm PCF fiber, including crimp sleeve and protective rubber sleeve
The FO connector style F-SMA is optimized in particular for applications using PCF fiber demanding a fast and easy cable assembly with high reliability, very good optical and mechanical characteristics.
 |
|
| Connector type |
F-SMA |
| Ferrule type |
metal, PCF
|
| Outer diameter |
3.17 mm |
| Inner diameter |
340µm
|
Protection class
|
-
|
Assembly type
|
crimping, adhesive bonding
|
| Accessories |
909MKGLASM002 Tool kit for glass optical fiber cable assemblies F-SMA
902SSSTSSM001 Dust protection cap red
902KT03250001 Protective rubber sleeve black for cable diameter 3.2mm
902KT03540010 Protective rubber sleeve black for cable diameter 3.5mm
HSM0632997010 Crimp sleeve for cable diameter 3.0mm
|
| Data sheet |
on request |
| Ordering information |
902SS330SM002
including protective rubber sleeve black for cable diameter 3.0mm
902SS330SM035
including protective rubber sleeve red for cable diameter 3.5mm
|
| Additional information |
- |
