Serie 021 |
Number of contacts
|
3 to 50 (1-row) 4 to 100 (2-row)
|
Performance
|

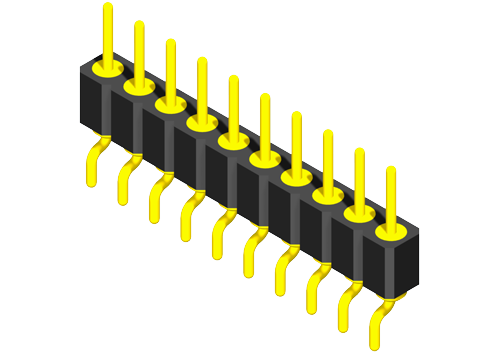

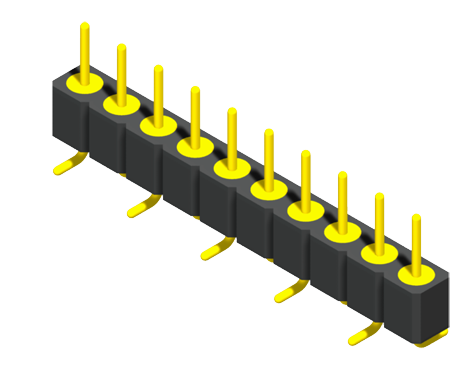

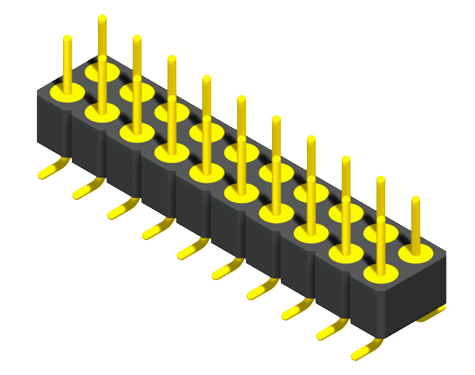

1-, 2- row, standing, lying
|
Insulator
|
Thermoplastic, rated UL94 V-0
|
Contact Material
|
0.41mm round, copper alloy
|
Contact Surface
|
Acc. to options (see below), over Ni
|
|
|
Contact Resistance
|
< 20mΩ
|
Insulation Resistance
|
> 1000MΩ
|
Test Voltage
|
1kVDC
|
Voltage Rating
|
500VAC
|
Current Rating
|
3A
|
Temperature Range
|
-55°C ... +125°C
|
|
|
Packaging |
Tube, Bulk ( standard) or Reel (on request) |
Partnumber example |
0210H00218010 (2 row 10pol.) 0210H03228008 (lying 8pol.) |
![](/images/PDF-icon.png)
|
Catalog page / datasheet
|
![](/images/3Dpdf.png) |
3D PDF File on request |
|
|
|
We manufacture the pin headers in every desired number and varying pitches as well as more pin lengthes and dimensions on request
|
|
|
