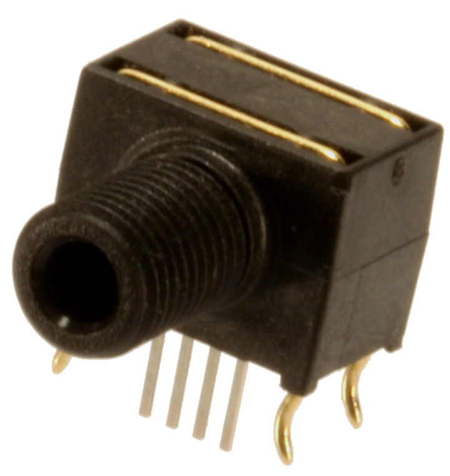

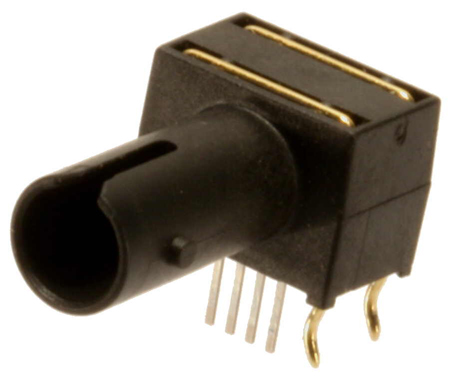

Optical emitter 650nm 50MBit/s diode housing (sidelooker/plastic)
This active component is especially suited for applications with standard 1mm plastic optical fiber. Pre-mounted with a fast 650nm LED capable of high optical output power, the component is a good solution in optical data transmission systems with plastic optical fibers.
 |
|
| Data rate |
50MBit/s |
| Wavelength |
650 nm
|
| Operating voltage |
- |
| Optical port |
F-SMA
F-ST
|
| Housing |
plastic housing
|
| Dimensions |
F-SMA 15.1 x 12.4 x 12.8 mm (LxWxH)
F-ST 20.6 x 12.4 x 12.8 mm (LxWxH) |
| Accessories |
- |
| Datasheet |
 |
| Ordering information |
905SE650SM402 F-SMA
905SE650ST402 F-ST
|
| Additional information |
conductive plastic
|
