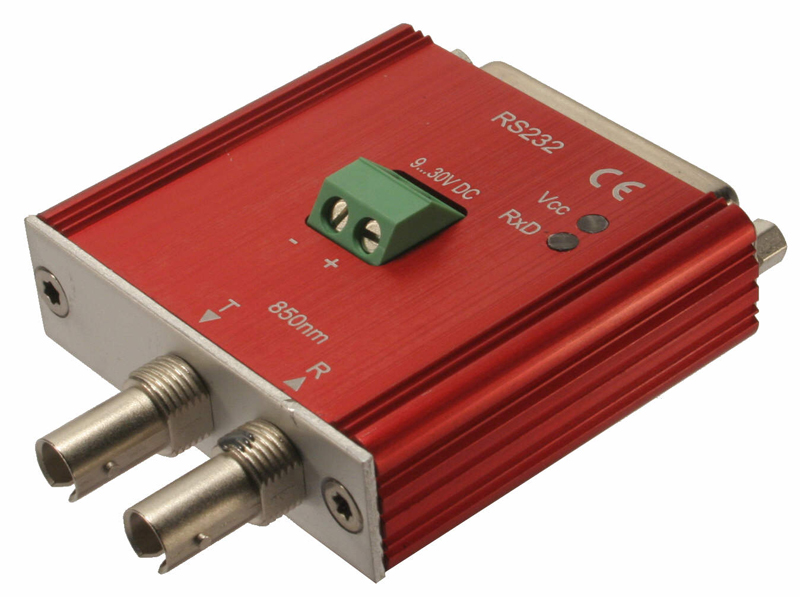

FI RS232 Half Party Line 1Channel DCE aluminium case, electrical 25-way Sub-D male
This device is a compact and robust modem for asynchronous data transmission in full-duplex mode. According to the used multi-mode fiber optic cable, data link length’s up to 3000m are possible. Used in conjunction with RS232 Party-Line 1Channel modems it is possible to build a fiber optic RS232 bus system which is less interference prone.
 |
|
Transmission protocol type
|
RS232 |
Data rate
|
120kBit/s |
Transmission direction
|
full-duplex
|
Wavelengths
|
660nm, 850nm |
| Optical Port |
F-SMA, F-ST
|
| Electrical port |
25-way Sub-D male
|
| Power supply |
+5V DC ±5% via Sub-D or
+9 .. 30V DC via screw terminal
|
Operating temperature
|
-40 to +80°C |
| Housing type |
aluminium extruded |
| Dimensions |
72 x 55 x 20mm (LxWxH) |
| Accessories |
- |
Data sheet
|
 |
| Ordering information |
901RS2321K551
901RS2321KR51 with mounting rail bracket
901RS2321K550 660 nm / F-ST
901RS2321KR50 with mounting rail bracket
901RS2321K549 850 nm / F-SMA
901RS2321KR49 with mounting rail bracket
901RS2321K548 850 nm / F-ST
|
| Additional information |
optional with mounting rail bracket
|
