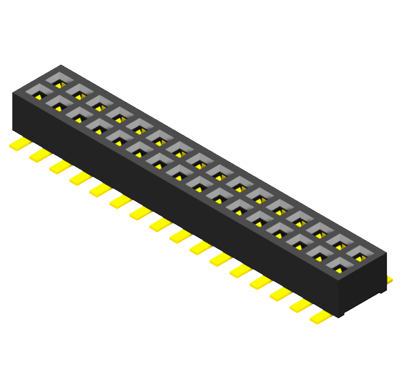

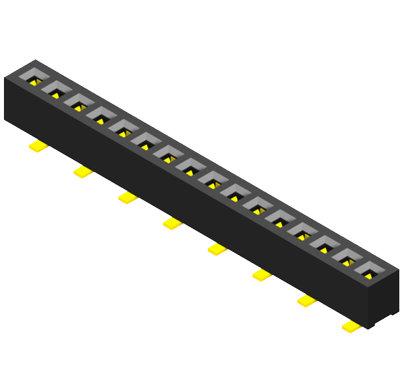

Serie 127

SMT Femaleheader Pitch 1,27mm for square contact 0,40mm
Total hight 2,2mm. 1 and 2 row standing

	Serie 127
Number of contacts	3-50 (1-row) 6 to 100 (2-row)
Performance	1-, 2- row - standing
Insulator	Thermoplastic, rated UL94 V-0
Contact Material	copper alloy
Contact Surface	Acc. to options (see below), over Ni

Contact Resistance	< 20mΩ
Insulation Resistance	> 1000MΩ
Test Voltage	1kV_DC
Voltage Rating	500V_AC
Current Rating	1A
Temperature Range	-40°C ... +105°C

Packaging	Tube ( standard) Reel on request
Partnumber example	12700FL221010 (10 contacts)
	Catalog page / datasheet
	3D PDF File on request

	We manufacture the pin headers in every desired number and varying pitches as well as more pin lengthes and dimensions on request
