Serie 042

Pinheader Pitch 1,27mm with square contact 0,40mm

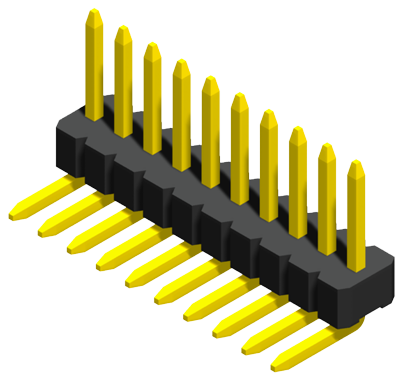

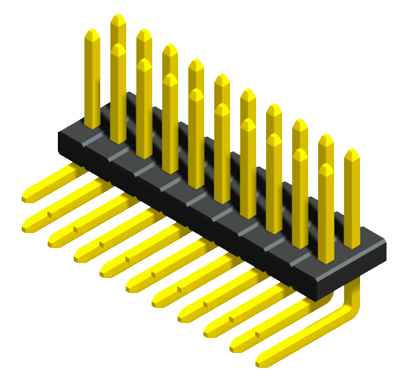

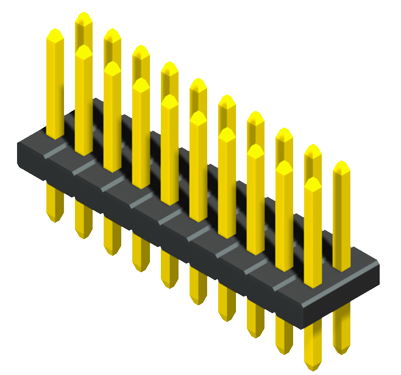

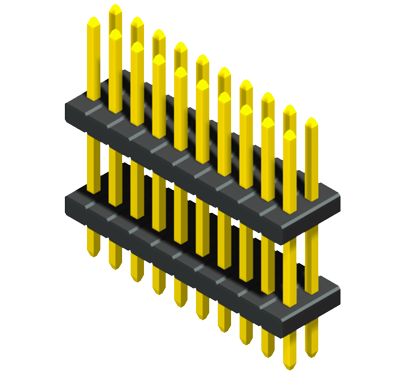

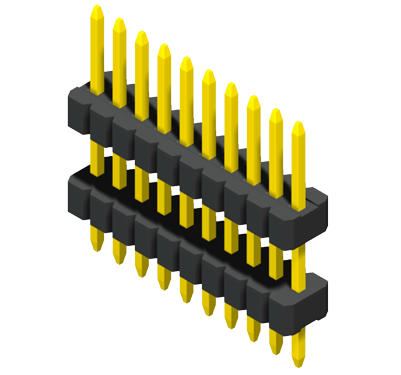

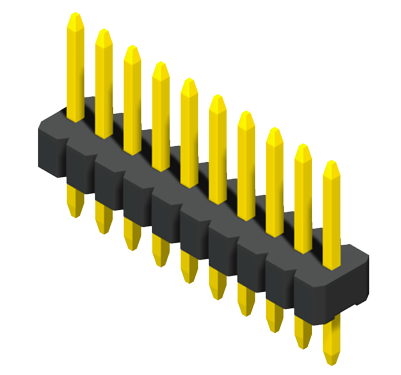

Versions in straight, double body and right angled

	Serie 042
Number of contacts	2 to 40 (1-row) 4 to 80 (2-row)
Performance	1-, 2- row, straight, right angled
Insulator	Nylon 6T, rated UL94 V-0
Contact Material	0.40mm square pin, Phosphor Bronze
Contact Surface	Acc. to options (see below), over Ni

Contact Resistance	< 20mΩ
Insulation Resistance	> 1000MΩ
Test Voltage	1kV_DC
Voltage Rating	500V_AC
Current Rating	1A
Temperature Range	-40°C ... +105°C

Packaging	Tube, Bulg ( standard) or Reel (on request)
Partnumber example	042H1FL131004 (Double body 4pol.) 042H2FL211010 (2 row 10pol.) 042H3FL221008 (right angled 8pol.)
	Catalog page / datasheet
	3D PDF File on request

	We manufacture the pin headers in every desired number and varying pitches as well as more pin lengthes and dimensions on request
