Serie 164

Serie 164
zoom Zoom image
Serie 164 Serie 164 Serie 164 Serie 164

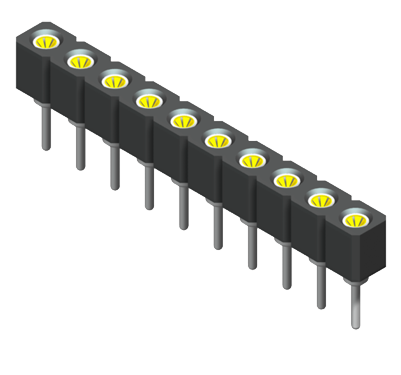

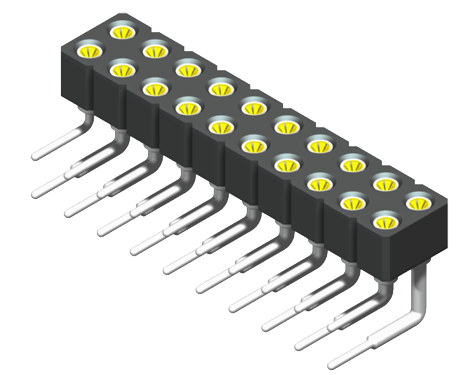

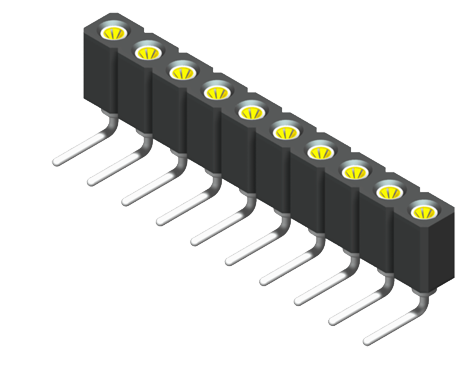

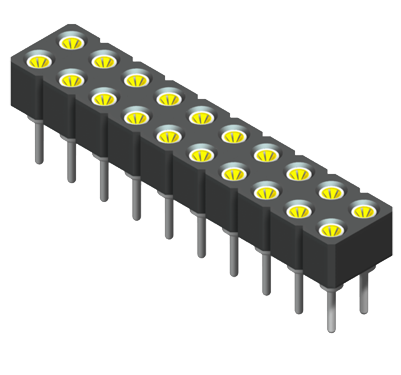

Femaleheader Pitch 2,0mm for round contact 0,40-0,660mm and square contact 0,5mm
Total hight 4,10mm. 1 and 2 row straight, right angled

  Serie 164

Number of contacts

3-50 (1-row) 6 to 100 (2-row)

Performance

1-,2- row - straight, right angled

Insulator

Thermoplastic, rated UL94 V-0

Contact Material

Brass

Contact Surface

Acc. to options (see below), over Ni



Contact Resistance

< 20mΩ

Insulation Resistance

> 1000MΩ

Test Voltage

1kVDC

Voltage Rating

500VAC

Current Rating

3A

Temperature Range

-55°C ... +125°C


Packaging Bulk (Standard), Tube on request
Partnumber example 1640HFL218010 (10 contacts)

Catalog page / datasheet
3D PDF File on request



We manufacture the pin headers in every desired number
and varying pitches as well as more pin lengthes
and dimensions on request
