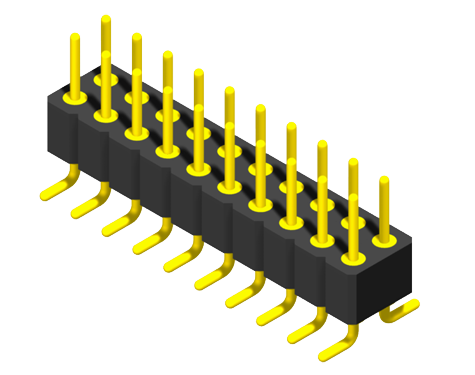

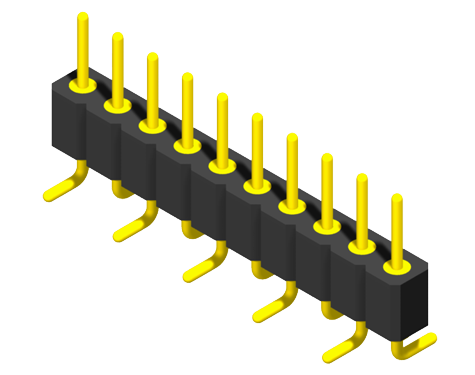

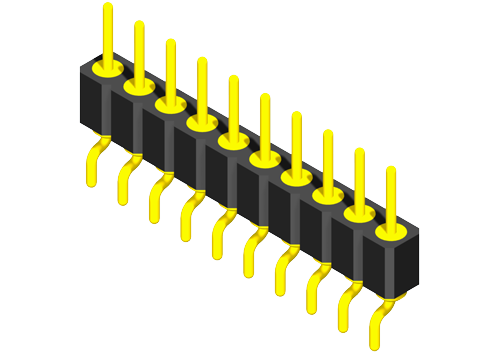

Serie 079

SMT Pinheader Pitch 2,0mm with round contact 0,47mm
Versions in standing and lying (only 1row)

	Serie 079
Number of contacts	3 to 50 (1-row) 4 to 100 (2-row)
Performance	1-, 2- row, standing, lying
Insulator	Thermoplastic, rated UL94 V-0
Contact Material	0.41mm round, copper alloy
Contact Surface	Acc. to options (see below), over Ni

Contact Resistance	< 20mΩ
Insulation Resistance	> 1000MΩ
Test Voltage	1kV_DC
Voltage Rating	500V_AC
Current Rating	3A
Temperature Range	-55°C ... +125°C

Packaging	Tube, Bulk ( standard) or Reel (on request)
Partnumber example	0795H00218010 (2 row 10pol.) 0795H03228008 (lying 8pol.)
	Catalog page / datasheet
	3D PDF File on request

	We manufacture the pin headers in every desired number and varying pitches as well as more pin lengthes and dimensions on request
