Serie 164

Femaleheader Pitch 2,0mm for round contact 0,70-0,90mm and square contact 0,64mm

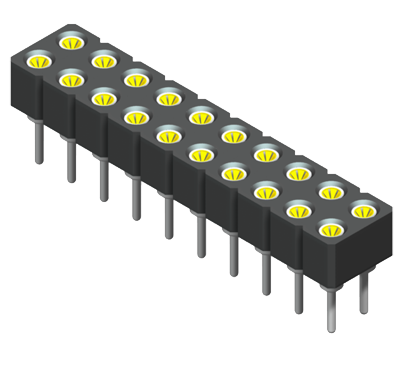

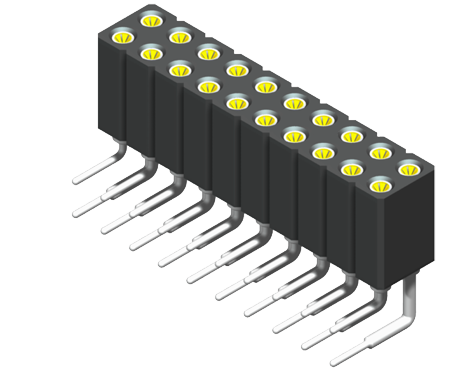

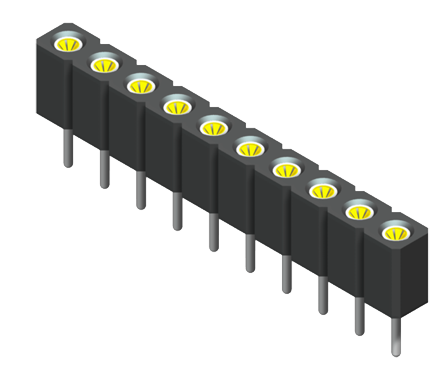

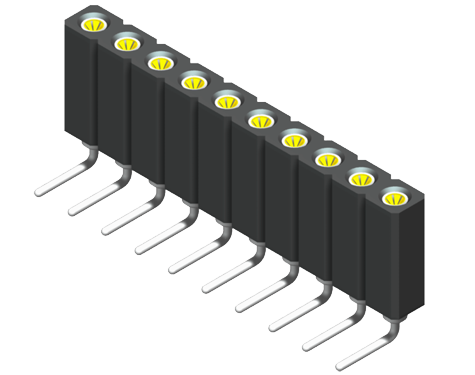

Total hight 7,00mm. 1 and 2 row straight, right angled

	Serie 164
Number of contacts	3-50 (1-row) 6 to 100 (2-row)
Performance	1-,2- row - straight, right angled
Insulator	Thermoplastic, rated UL94 V-0
Contact Material	Brass
Contact Surface	Acc. to options (see below), over Ni

Contact Resistance	< 20mΩ
Insulation Resistance	> 1000MΩ
Test Voltage	1kV_DC
Voltage Rating	500V_AC
Current Rating	3A
Temperature Range	-55°C ... +125°C

Packaging	Bulk (Standard), Tube on request
Partnumber example	1640HSF212010 (10 contacts)
	Catalog page / datasheet
	3D PDF File on request

	We manufacture the pin headers in every desired number and varying pitches as well as more pin lengthes and dimensions on request
