Serie 110

Number of contacts

2 to 50 (1-row) 4 to 100 (2-row)

Performance

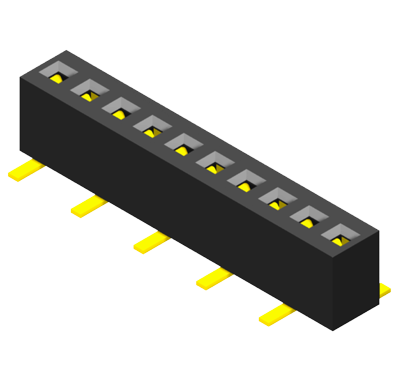

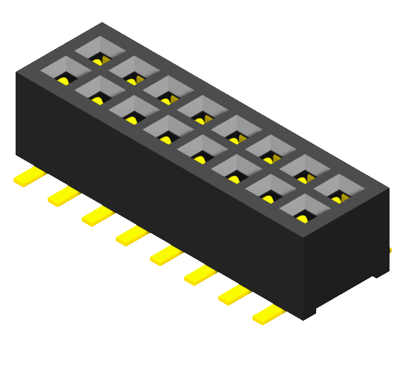

SMT 1-, 2- row - standing, lying with - without locating peg

Insulator

LCP, rated UL94 V-0

Contact Material

Phosphor Bronze

Contact Surface

Acc. to options (see below), over Ni

Contact Resistance

< 20mΩ

Insulation Resistance

> 1000MΩ

Test Voltage

1kV_DC

Voltage Rating

500V_AC

Current Rating

1A

Temperature Range

-40°C ... +105°C

We manufacture the pin headers in every desired number
and varying pitches as well as more pin lengthes
and dimensions on request
